Home/Products/Lead-Acid Battery/DC Series Deep-Cycle Battery

Overview Features Specifications Models (30)FAQ Get a Quote

AGM Deep Cycle30 models

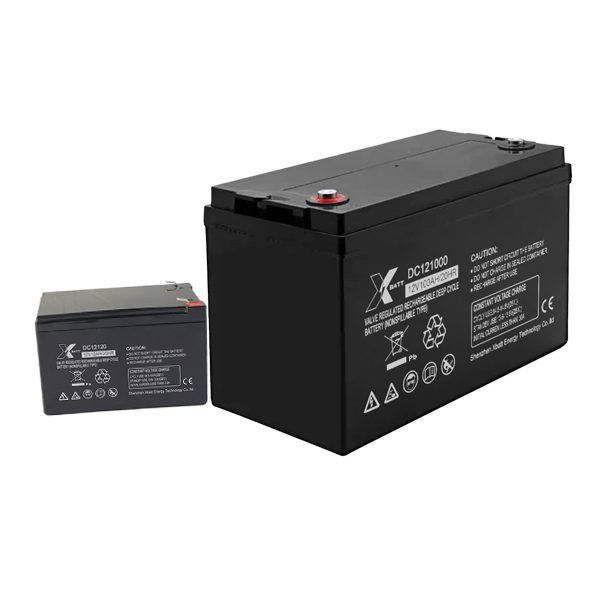

DC Series Deep-Cycle Battery

Lead-tin-calcium grids for repeated deep discharge

DC series uses lead-tin-calcium alloy grids and thick porous-free plates to withstand repeated deep charge/discharge cycles.

A specialized active paste and slightly stronger electrolyte extend service life in deep-cycle duty.

Models

Voltage

Weight (kg)

Get a Quote View 30 Models Product of Interest

Features

Lead-tin-calcium grid for deep cycling
Thick plates, high-density active paste
Stable capacity under repeated cycles
Long life in deep-discharge duty

Application

Golf Cart & Light EVSolar & Wind StorageRV & Marine

Series Specifications

Voltage range: 6V / 12V
Capacity range: 100Ah – 250Ah
Design life: 8–12 years
Terminal: M6 / M8 / TPI
Case material: ABS
Operating temp.: -20°C ~ 60°C

DC Series Deep-Cycle Battery — Model Specifications

30 models

Get a Quote

30 models

			Dimensions L×W×H×TH (mm)	Terminal
DC24-12	12V	24Ah	167×175×125 (125)	T2	8.00
DC26-12	12V	26Ah	167×175×125 (125)	T2	8.30
DC26-12S	12V	26Ah	166×174×174 (174)	T2	8.40
DC35-12 (U1)	12V	35Ah	196×131×155 (167)	T3	10.50
DC40-12 (U1L)	12V	40Ah	198×166×174 (174)	T2	14.20
DC55-12 (22NF)	12V	55Ah	229×138×208 (212)	T3	16.00
DC65-12 (93)	12V	65Ah	351×167×176 (176)	T3	23.60
DC70-12 (24)	12V	70Ah	260×169×211 (215)	T3	24.00
DC85-12 (24)	12V	85Ah	260×169×211 (215)	T3	25.10
DC90-12 (27)	12V	90Ah	307×169×211 (215)	T3	28.20
DC105-12 (27)	12V	105Ah	307×169×211 (215)	T3	30.20
DC115-12 (31)	12V	115Ah	331×175×214 (218)	T4	32.90
DC115-12S (31)	12V	115Ah	328×172×214 (220)	T4	32.70
DC120-12	12V	120Ah	407×174×210 (240)	T5	38.20
DC135-12	12V	135Ah	341×173×281 (287)	T5	39.20
DC150-12	12V	150Ah	484×171×241 (241)	T4	44.50
DC160-12	12V	160Ah	484×171×241 (241)	T4	45.50
DC180-12 (4D)	12V	180Ah	532×206×216 (221)	T4	56.00
DC200-6	6V	200Ah	306×169×220 (226)	T5	30.00
DC200-8 (GC8H)	8V	200Ah	260×182×295 (299)	T5	37.60
DC200-12 (4D)	12V	200Ah	522×240×219 (224)	T4	58.40
DC210-12 (4D)	12V	210Ah	532×206×216 (221)	T4	57.80
DC220-6	6V	220Ah	306×174×220 (226)	T5	32.20
DC220-12 (4D)	12V	220Ah	522×240×219 (224)	T4	65.00
DC224-6 (GC2)	6V	224Ah	260×180×245 (251)	T5	29.80
DC240-12 (8D)	12V	240Ah	520×269×203 (208)	T5	71.00
DC245-6 (DIN)	6V	245Ah	244×190×275 (275)	T5 / AP	30.00
DC260-12 (8D)	12V	260Ah	521×269×220 (224)	T5	77.00
DC335-6 (902/305)	6V	335Ah	295×178×346 (366)	DT-tS / AP	46.00
DC400-6 (L16)	6V	400Ah	295×179×404 (424)	DT-tS / AP	55.70

DC24-128.00 kg

Voltage: 12V
Capacity: 24Ah
Dimensions L×W×H×TH (mm): 167×175×125 (125)
Terminal: T2

DC26-128.30 kg

Voltage: 12V
Capacity: 26Ah
Dimensions L×W×H×TH (mm): 167×175×125 (125)
Terminal: T2

DC26-12S8.40 kg

Voltage: 12V
Capacity: 26Ah
Dimensions L×W×H×TH (mm): 166×174×174 (174)
Terminal: T2

DC35-12 (U1)10.50 kg

Voltage: 12V
Capacity: 35Ah
Dimensions L×W×H×TH (mm): 196×131×155 (167)
Terminal: T3

DC40-12 (U1L)14.20 kg

Voltage: 12V
Capacity: 40Ah
Dimensions L×W×H×TH (mm): 198×166×174 (174)
Terminal: T2

DC55-12 (22NF)16.00 kg

Voltage: 12V
Capacity: 55Ah
Dimensions L×W×H×TH (mm): 229×138×208 (212)
Terminal: T3

DC65-12 (93)23.60 kg

Voltage: 12V
Capacity: 65Ah
Dimensions L×W×H×TH (mm): 351×167×176 (176)
Terminal: T3

DC70-12 (24)24.00 kg

Voltage: 12V
Capacity: 70Ah
Dimensions L×W×H×TH (mm): 260×169×211 (215)
Terminal: T3

DC85-12 (24)25.10 kg

Voltage: 12V
Capacity: 85Ah
Dimensions L×W×H×TH (mm): 260×169×211 (215)
Terminal: T3

DC90-12 (27)28.20 kg

Voltage: 12V
Capacity: 90Ah
Dimensions L×W×H×TH (mm): 307×169×211 (215)
Terminal: T3

DC105-12 (27)30.20 kg

Voltage: 12V
Capacity: 105Ah
Dimensions L×W×H×TH (mm): 307×169×211 (215)
Terminal: T3

DC115-12 (31)32.90 kg

Voltage: 12V
Capacity: 115Ah
Dimensions L×W×H×TH (mm): 331×175×214 (218)
Terminal: T4

DC115-12S (31)32.70 kg

Voltage: 12V
Capacity: 115Ah
Dimensions L×W×H×TH (mm): 328×172×214 (220)
Terminal: T4

DC120-1238.20 kg

Voltage: 12V
Capacity: 120Ah
Dimensions L×W×H×TH (mm): 407×174×210 (240)
Terminal: T5

DC135-1239.20 kg

Voltage: 12V
Capacity: 135Ah
Dimensions L×W×H×TH (mm): 341×173×281 (287)
Terminal: T5

DC150-1244.50 kg

Voltage: 12V
Capacity: 150Ah
Dimensions L×W×H×TH (mm): 484×171×241 (241)
Terminal: T4

DC160-1245.50 kg

Voltage: 12V
Capacity: 160Ah
Dimensions L×W×H×TH (mm): 484×171×241 (241)
Terminal: T4

DC180-12 (4D)56.00 kg

Voltage: 12V
Capacity: 180Ah
Dimensions L×W×H×TH (mm): 532×206×216 (221)
Terminal: T4

DC200-630.00 kg

Voltage: 6V
Capacity: 200Ah
Dimensions L×W×H×TH (mm): 306×169×220 (226)
Terminal: T5

DC200-8 (GC8H)37.60 kg

Voltage: 8V
Capacity: 200Ah
Dimensions L×W×H×TH (mm): 260×182×295 (299)
Terminal: T5

DC200-12 (4D)58.40 kg

Voltage: 12V
Capacity: 200Ah
Dimensions L×W×H×TH (mm): 522×240×219 (224)
Terminal: T4

DC210-12 (4D)57.80 kg

Voltage: 12V
Capacity: 210Ah
Dimensions L×W×H×TH (mm): 532×206×216 (221)
Terminal: T4

DC220-632.20 kg

Voltage: 6V
Capacity: 220Ah
Dimensions L×W×H×TH (mm): 306×174×220 (226)
Terminal: T5

DC220-12 (4D)65.00 kg

Voltage: 12V
Capacity: 220Ah
Dimensions L×W×H×TH (mm): 522×240×219 (224)
Terminal: T4

DC224-6 (GC2)29.80 kg

Voltage: 6V
Capacity: 224Ah
Dimensions L×W×H×TH (mm): 260×180×245 (251)
Terminal: T5

DC240-12 (8D)71.00 kg

Voltage: 12V
Capacity: 240Ah
Dimensions L×W×H×TH (mm): 520×269×203 (208)
Terminal: T5

DC245-6 (DIN)30.00 kg

Voltage: 6V
Capacity: 245Ah
Dimensions L×W×H×TH (mm): 244×190×275 (275)
Terminal: T5 / AP

DC260-12 (8D)77.00 kg

Voltage: 12V
Capacity: 260Ah
Dimensions L×W×H×TH (mm): 521×269×220 (224)
Terminal: T5

DC335-6 (902/305)46.00 kg

Voltage: 6V
Capacity: 335Ah
Dimensions L×W×H×TH (mm): 295×178×346 (366)
Terminal: DT-tS / AP

DC400-6 (L16)55.70 kg

Voltage: 6V
Capacity: 400Ah
Dimensions L×W×H×TH (mm): 295×179×404 (424)
Terminal: DT-tS / AP

* Capacity shown at 20-hour rate (C20) unless stated otherwise. Dimensions are L×W×H with total height in brackets. Custom sizes and terminals available on request — full OEM / ODM support.

FAQ

What is DC Series Deep-Cycle Battery used for?

DC Series Deep-Cycle Battery is built for Golf Cart & Light EV, Solar & Wind Storage, RV & Marine. If your load profile or cabinet size is unusual, send us the numbers — we will match the model, or quote a custom build.

What service life can I expect?

Design / cycle life: 8–12 years. Real-world life depends on temperature, depth of discharge and charging quality — we size the bank for your target years, not just the datasheet number.

What is the MOQ?

Standard models start at 50–100 pieces per model, and several models can be mixed in one container. For OEM / ODM with your own labels or colours, the MOQ is agreed per project.

What is the lead time?

Standard models ship in 15–25 days after deposit. Custom OEM orders usually take 30–45 days including label and packaging approval. Sea freight adds 20–35 days depending on destination.

Do you support OEM / ODM?

Yes — custom labels, colours, terminal types, carton printing and manuals. We also develop to your target capacity or dimensions. An NDA can be signed before you share drawings.

What certifications do you have, and can batteries be shipped?

CE and RoHS for the EU market, plus MSDS and UN38.3 with the documentation required for sea and air transport. Test reports can be supplied with the quotation.
