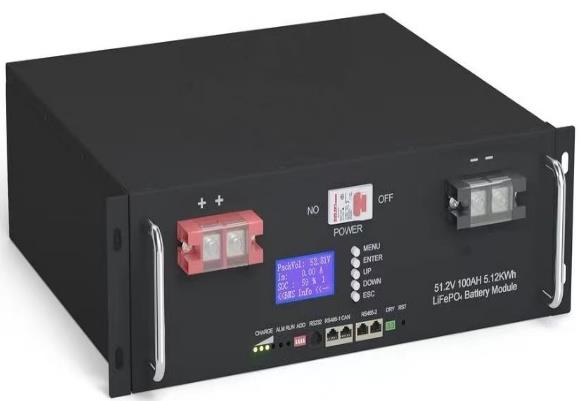

TBS Series Telecom Base Station Battery
51.2V LiFePO4 battery for telecom base stations — 2.56 to 10.24kWh, RS485/RS232/CAN
Based on LiFePO4 cells and equipped with a high-performance, stable and reliable BMS, installed in a standardized case.
Green environmental protection, high energy density, long charge/discharge cycle life and good safety — widely used in intelligent machine rooms, household and photovoltaic energy storage systems.
Features
- LiFePO4 cells with high-performance, stable and reliable BMS
- Green environmental protection, high energy density
- Long charge/discharge cycle life, good safety performance
- Good compatibility and operability
- RS232 / RS485 / CAN communication
- 16S1P pack, ≥2000 cycles
Application
Series Specifications
- Voltage
- 51.2V
- Capacity range
- 50Ah – 200Ah
- Energy
- 2.56kWh – 10.24kWh
- Charge voltage
- 58.4V
- Discharge cut-off
- 40V
- Pack method
- 16S1P
- Communication
- RS485 / RS232 / CAN
- Cycle life
- ≥2000 times
- Working temp.
- Charge 0–60°C / Discharge -20–60°C
TBS Series Telecom Base Station Battery — Model Specifications
4 models
| Dimensions L×W×H×TH (mm) | Terminal | ||||
|---|---|---|---|---|---|
| TBS-48V50Ah | 51.2V | 50Ah | 482×400×77 | ≤30 | |
| TBS-48V100Ah | 51.2V | 100Ah | 482×440×177 | ≤48 | |
| TBS-48V150Ah | 51.2V | 150Ah | 482×440×222 | ≤65 | |
| TBS-48V200Ah | 51.2V | 200Ah | 482×500×280 | ≤84 |
- Voltage
- 51.2V
- Capacity
- 50Ah
- Dimensions L×W×H×TH (mm)
- 482×400×77
- Terminal
- —
- Voltage
- 51.2V
- Capacity
- 100Ah
- Dimensions L×W×H×TH (mm)
- 482×440×177
- Terminal
- —
- Voltage
- 51.2V
- Capacity
- 150Ah
- Dimensions L×W×H×TH (mm)
- 482×440×222
- Terminal
- —
- Voltage
- 51.2V
- Capacity
- 200Ah
- Dimensions L×W×H×TH (mm)
- 482×500×280
- Terminal
- —
* Capacity shown at 20-hour rate (C20) unless stated otherwise. Dimensions are L×W×H with total height in brackets. Custom sizes and terminals available on request — full OEM / ODM support.
FAQ
What is TBS Series Telecom Base Station Battery used for?
TBS Series Telecom Base Station Battery is built for Telecom & Base Station, UPS & Data Center, Solar & Wind Storage. If your load profile or cabinet size is unusual, send us the numbers — we will match the model, or quote a custom build.
What service life can I expect?
Design / cycle life: ≥2000 times. Real-world life depends on temperature, depth of discharge and charging quality — we size the bank for your target years, not just the datasheet number.
What is the MOQ?
Standard models start at 50–100 pieces per model, and several models can be mixed in one container. For OEM / ODM with your own labels or colours, the MOQ is agreed per project.
What is the lead time?
Standard models ship in 15–25 days after deposit. Custom OEM orders usually take 30–45 days including label and packaging approval. Sea freight adds 20–35 days depending on destination.
Do you support OEM / ODM?
Yes — custom labels, colours, terminal types, carton printing and manuals. We also develop to your target capacity or dimensions. An NDA can be signed before you share drawings.
What certifications do you have, and can batteries be shipped?
CE and RoHS for the EU market, plus MSDS and UN38.3 with the documentation required for sea and air transport. Test reports can be supplied with the quotation.
