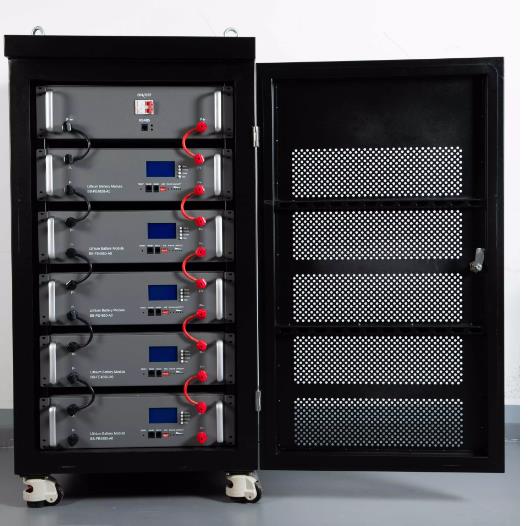

HV Series High Voltage Battery System
204.8V / 512V high-voltage ESS — 20.48 & 51.2kWh, up to 16 modules in series/parallel
Small size, large capacity, easy to move and scalable — supporting up to 16 modules in series or parallel connection; BMS with multiple protection functions.
Applicable to backup power supply for commercial office buildings, catering and computer rooms, and to communication / photovoltaic / industrial / household energy storage.
Features
- Supports series & parallel connection
- Supports customization
- 10-year service life
- Compatible with global mainstream inverters
- BMS with multiple protection functions
- Modular, simple structure, easy to install and maintain
Application
Series Specifications
- Voltage
- 204.8V / 512V
- Capacity
- 100Ah
- Energy
- 20.48kWh / 51.2kWh
- Pack method
- 4S1P / 10S1P
- Charge voltage
- 233.6V / 584V
- Discharge cut-off
- 160V / 400V
- Communication
- RS485 / RS232 / CAN
- Cycle life
- ≥2000 times
- Working temp.
- Charge 0–60°C / Discharge -20–60°C
HV Series High Voltage Battery System — Model Specifications
2 models
| Dimensions L×W×H×TH (mm) | Terminal | ||||
|---|---|---|---|---|---|
| HV-192V100Ah | 204.8V | 100Ah | OEM | 220 | |
| HV-512V100Ah | 512V | 100Ah | OEM | 450 |
- Voltage
- 204.8V
- Capacity
- 100Ah
- Dimensions L×W×H×TH (mm)
- OEM
- Terminal
- —
- Voltage
- 512V
- Capacity
- 100Ah
- Dimensions L×W×H×TH (mm)
- OEM
- Terminal
- —
* Capacity shown at 20-hour rate (C20) unless stated otherwise. Dimensions are L×W×H with total height in brackets. Custom sizes and terminals available on request — full OEM / ODM support.
FAQ
What is HV Series High Voltage Battery System used for?
HV Series High Voltage Battery System is built for UPS & Data Center, Solar & Wind Storage, Telecom & Base Station, Security & Emergency. If your load profile or cabinet size is unusual, send us the numbers — we will match the model, or quote a custom build.
What service life can I expect?
Design / cycle life: ≥2000 times. Real-world life depends on temperature, depth of discharge and charging quality — we size the bank for your target years, not just the datasheet number.
What is the MOQ?
Standard models start at 50–100 pieces per model, and several models can be mixed in one container. For OEM / ODM with your own labels or colours, the MOQ is agreed per project.
What is the lead time?
Standard models ship in 15–25 days after deposit. Custom OEM orders usually take 30–45 days including label and packaging approval. Sea freight adds 20–35 days depending on destination.
Do you support OEM / ODM?
Yes — custom labels, colours, terminal types, carton printing and manuals. We also develop to your target capacity or dimensions. An NDA can be signed before you share drawings.
What certifications do you have, and can batteries be shipped?
CE and RoHS for the EU market, plus MSDS and UN38.3 with the documentation required for sea and air transport. Test reports can be supplied with the quotation.
