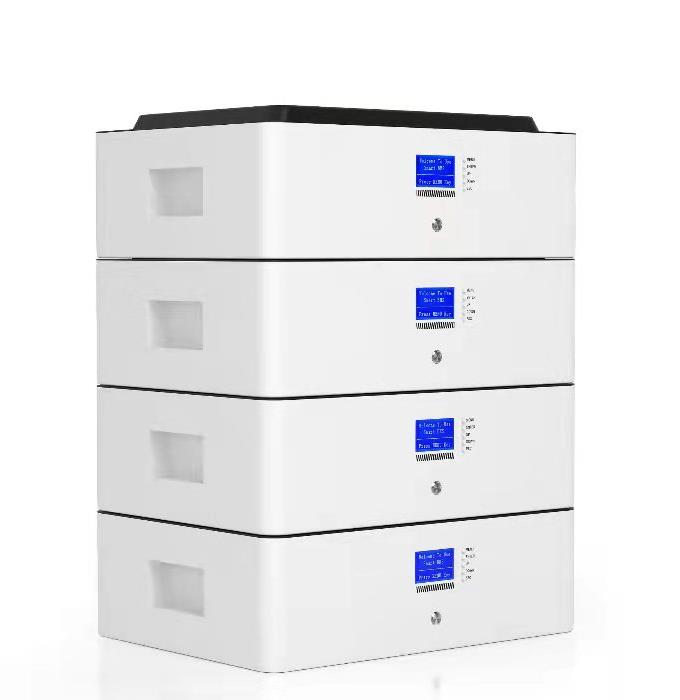

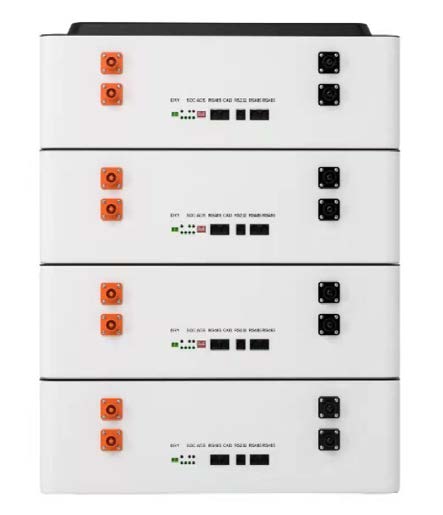

ST Series Stackable Energy Storage Battery
Modular stackable 51.2V storage — 5.12 / 10.24kWh per stack, parallel-ready
Small size, large capacity, convenient to move; modular design makes connection and installation easy.

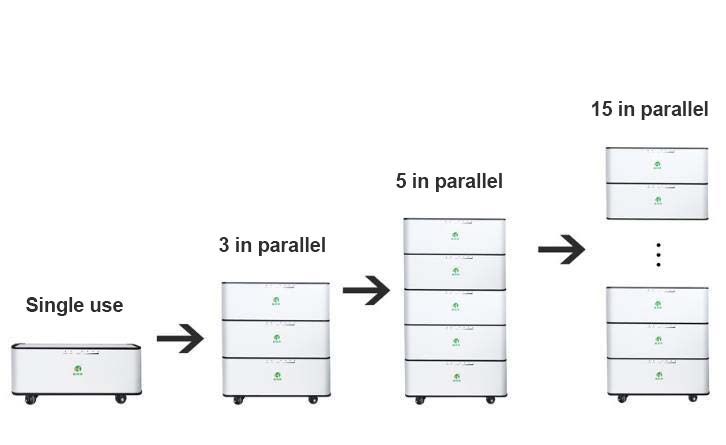

The battery pack supports parallel use for large-capacity applications, and the BMS offers multiple protection functions with flexible, reliable, scalable upgrades.
Features
- Small size, large capacity, easy to move
- Modular design, easy connection and installation
- Parallel use supported for large capacity applications
- BMS with multiple protection functions, scalable upgrade
- Highly modularized, simple structure, easy to install and maintain
Application
Series Specifications
- Voltage
- 51.2V
- Capacity range
- 100Ah – 200Ah
- Energy
- 5.12kWh – 10.24kWh
- Charge voltage
- 58.4V
- Discharge cut-off
- 40V
- Communication
- RS485 / RS232 / CAN
- Cycle life
- ≥2000 times
- Working temp.
- Charge 0–60°C / Discharge -20–60°C
ST Series Stackable Energy Storage Battery — Model Specifications
2 models
| Dimensions L×W×H×TH (mm) | Terminal | ||||
|---|---|---|---|---|---|
| ST-48V100Ah | 51.2V | 100Ah | 580×430×200 | 45 | |
| ST-48V200Ah | 51.2V | 200Ah | 580×430×400 | 90 |
- Voltage
- 51.2V
- Capacity
- 100Ah
- Dimensions L×W×H×TH (mm)
- 580×430×200
- Terminal
- —
- Voltage
- 51.2V
- Capacity
- 200Ah
- Dimensions L×W×H×TH (mm)
- 580×430×400
- Terminal
- —
* Capacity shown at 20-hour rate (C20) unless stated otherwise. Dimensions are L×W×H with total height in brackets. Custom sizes and terminals available on request — full OEM / ODM support.
FAQ
What is ST Series Stackable Energy Storage Battery used for?
ST Series Stackable Energy Storage Battery is built for Solar & Wind Storage, UPS & Data Center, Telecom & Base Station. If your load profile or cabinet size is unusual, send us the numbers — we will match the model, or quote a custom build.
What service life can I expect?
Design / cycle life: ≥2000 times. Real-world life depends on temperature, depth of discharge and charging quality — we size the bank for your target years, not just the datasheet number.
What is the MOQ?
Standard models start at 50–100 pieces per model, and several models can be mixed in one container. For OEM / ODM with your own labels or colours, the MOQ is agreed per project.
What is the lead time?
Standard models ship in 15–25 days after deposit. Custom OEM orders usually take 30–45 days including label and packaging approval. Sea freight adds 20–35 days depending on destination.
Do you support OEM / ODM?
Yes — custom labels, colours, terminal types, carton printing and manuals. We also develop to your target capacity or dimensions. An NDA can be signed before you share drawings.
What certifications do you have, and can batteries be shipped?
CE and RoHS for the EU market, plus MSDS and UN38.3 with the documentation required for sea and air transport. Test reports can be supplied with the quotation.
Get a Quote for This Series
Tell us the models and quantities you need — our sales team replies within 24 hours.
